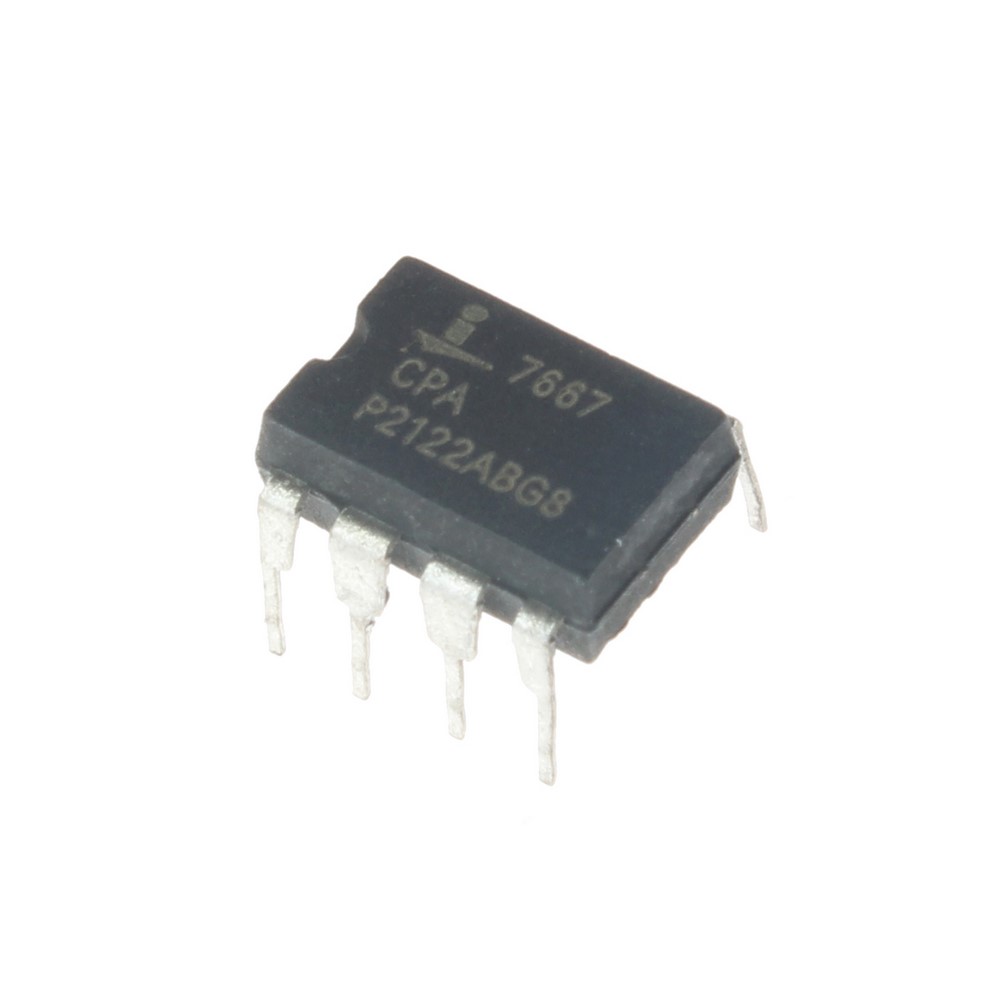

IC7667CPA Dual MOSFET Driver
The IC7667CPA is a high-speed dual MOSFET and IGBT driver designed to drive power transistors in switching applications such as power supplies, motor drivers, and DC-DC converters. It provides high current and fast switching performance, suitable for driving both N-channel and P-channel MOSFETs.
Specifications:
- Dual high-speed MOSFET driver
- Output current: ±1.5 A peak
- Operating voltage: 4.5V to 20V
- Rise/fall time: < 30 ns with 1,000 pF load
- Input logic compatible with TTL and CMOS
- Propagation delay: ~35 ns
- Low output impedance
- Latch-up protection and thermal stability
- Power Dissipation: 1 W max (DIP-8, @25°C)
- Operating Temperature Range: 0°C to +70°C
- Package: 8-pin DIP (CPA suffix)
Applications:
- DC-DC converters
- Motor driver circuits
- Switch-mode power supplies (SMPS)
- Pulse transformer drivers
- General MOSFET and IGBT gate driving
